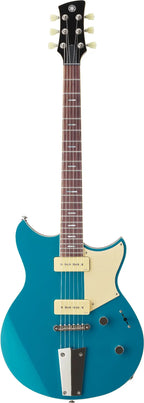

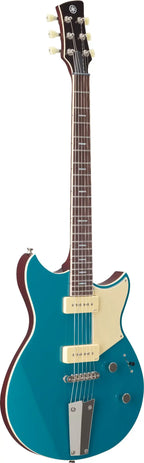

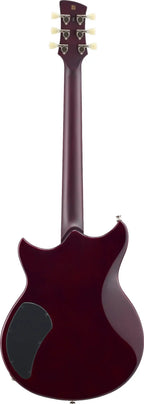

Yamaha Revstar Gen2 Standard P90 Guitar - Swift Blue

W/- Deluxe Gig Bag

Originally launched in 2015, Revstar was the first new electric guitar series from Yamaha in over a decade. A completely new lineup for 2022 offers three tiers, chambered bodies on every model, new racing-inspired finishes, new switching options, and left-handed models.

The RSS02T features four finish options, a custom tailpiece, chambered body and carbonreinforced neck, dual P90-style pickups, 5-way switching, and a Focus Switch.

• Swift Blue chambered mahogany body enhances tone
• P90 pickups deliver rich, classic sound
• 5-way switch offers versatile tonal options
• Focus Switch boosts bass and mids dynamically
• Carbon-reinforced neck for added durability
• Gloss polyurethane finish adds sleek look

CHAMBERED BODIES
Every new Revstar features a chambered body designed with Yamaha’s Acoustic Design process to sculpt tone and increase resonance while reducing weight and optimising balance.

5-WAY SWITCHING
Standard and Professional models offer 5-way switching. In positions 2 and 4, our circuit slightly delays the opposite pickup for a new take on classic “in between” sounds.

FOCUS SWITCH
The push/pull Focus Switch on Standard and Professional models activates a passive boost that darkens highs while increasing bass and mids for an effect like overwound pickups.

CARBON REINFORCEMENT (Standard and Professional models only)
Revstar Standard and Professional models feature carbon-reinforced necks. Professional models also add carbon reinforcement to the body for weight relief, vibration transfer, and tone shaping.

DRY SWITCH
Revstar Element models feature our push/pull Dry Switch high-pass filter circuit that was first introduced with the original Revstar series.

INITIAL RESPONSE ACCELERATION (I.R.A.)
Revstar Professional guitars receive Yamaha’s I.R.A. treatment process which applies specifics vibrations to release stresses in the instrument for a “played in” tone.

Spec:

Construction Set-in
Scale Length 24-3/4" (628.6mm)
Body Materials
Top: Maple
Back: Chambered Mahogany
Body Finish Gloss Polyurethane
Neck Materials
3pc Mahogany,
Carbon Reinforcement
Neck Finish Satin Polyurethane
Fingerboard Materials Rosewood
Fingerboard Radius 12" (304.8mm)
Fret Wire Jumbo Stainless Steel
Number of Frets 22
Neck Width @0 Fret / 12th Fret 41.9 / 56.8 mm
Thickness @1st Fret / 12th Fret 21.0 / 23.9 mm
Nut Materials High-Strength PPS
Neck Pickup VP5n (P90 type Single coil / Alnico V)
Bridge Pickup VP5b (P90 type Single coil / Alnico V)
Controls
Master Volume, Master Tone
(Push-Pull "Focus Switch")
Pickup Switch 5-Position Lever Switch
Bridge Tune-O-Matic
String spacing 10.5 mm
Tailpiece Racing Tailpiece
Tuning Machines Die-Cast
Pickguard 3-ply (Cream)
String gauge Elixir Nanoweb Light / 0.010-0.046
Case Gig Bag
