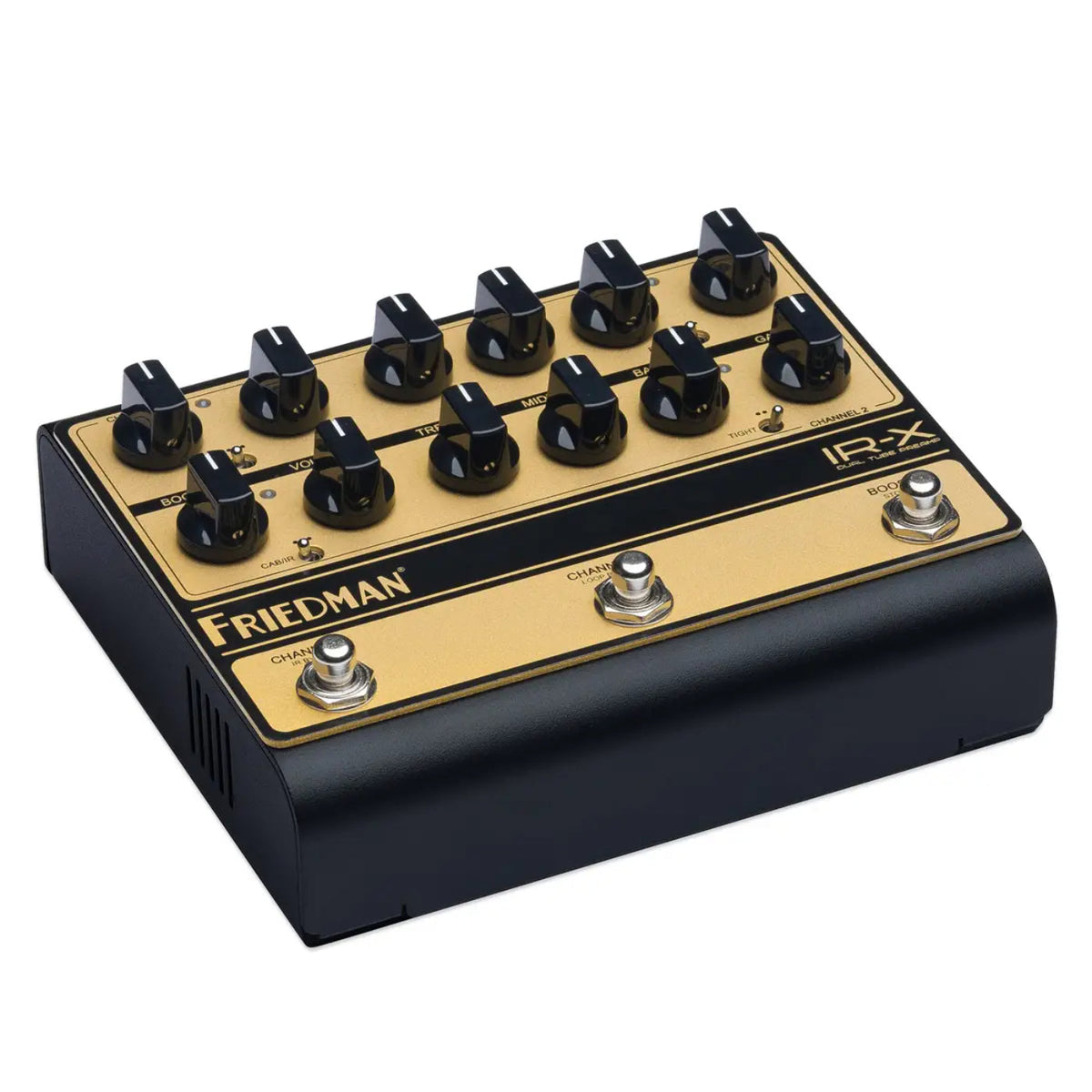

Friedman IR-X Dual Tube High Voltage Preamp Pedal

All-Tube Friedman Tone

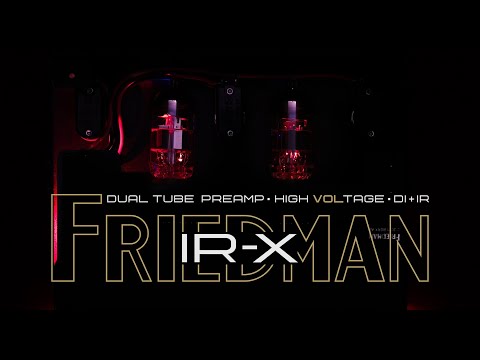

IR-X isn't simulating a Friedman tube preamp. It is one. While many available preamp pedals utilize tubes to 'warm up' their digital or solid-state circuit, two glowing hot 12AX7 preamp tubes, running at the proper high voltage, are this pedal's beating heart. A genuine preamp in every way, IR-X delivers all the tone, response, gain characteristics, and harmonic complexity you expect from a Friedman design.

2 Independent Channels with Boost

IR-X boasts two fully independent foot-switchable channels. Like the famed Friedman flagship amps, channel one takes your tone from bluesy, British-voiced cleans to a muscular Plexi-style roar. Engage channel two for the Friedman signature higher-gain voice and all the percussive punch, note clarity and singing sustain that comes with it.

Dual Independent Boosts

Both channels feature their own independent and highly tweakable Boost circuits. This essentially gives you four channels, accessible with the tap of your toe.

Impulse Response Cabinet and Power Amp Simulation

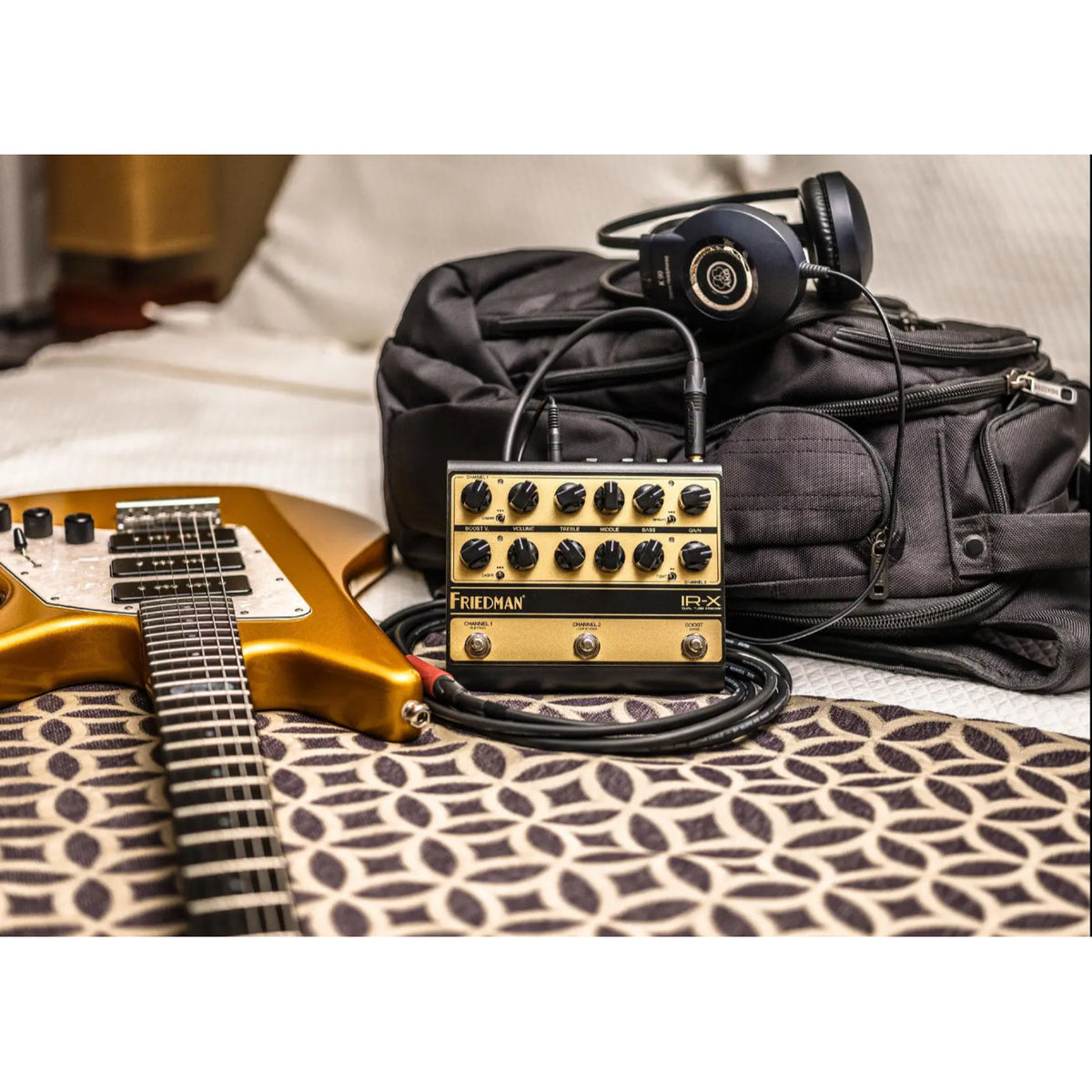

All great tube amps need a great speaker cabinet, and whether sending your signal straight to the board or silently playing through the onboard headphone output, IR-X gives you a selection of Dave Friedman’s favorite IRs. Select the IR per channel using the 3-way mini toggle switches or load your own quickly and easily via IR-X’s editing software. You can even disengage the onboard IRs entirely to use IR-X’s tube preamp with another IR loader.

12 Friedman Cabinet IRs Included:  The IR-X software includes 12 free Friedman IRs to choose from.  The first three listed below are the ones which are factory set to the hardware.

• 6402 57 121 - Dave Friedman's favorite 4x12 cab in bare wood. This is Dave's primary workshop cab and has been used to voice his amplifiers since the very beginning. It's fitted with four 6402 Greenback speakers and was captured with an SM57 and R-121 for a nice balance of cut and body.
• V30  - Stock Friedman 4x12 closed-back cabinet, loaded with four Celestion® Vintage 30 speakers. Captured with a single SM57 and API preamp for a pure, punchy sound.
• 1980B V30 GB - A rare UK model 4x12 cab from the 80’s rock era. This 1980B “Bass” cabinet is loaded with British Greenback in the top and V30’s in the bottom. This blend of speakers and careful micing creates a huge tone with a massive sound with big bottom and cutting top end.

Flexible Rig Integration
The IR-X’s transparent effects loop allows you to easily integrate your favorite effects with everything from the most straightforward setups to the most complex digitally controlled rigs.


IR-X Integration

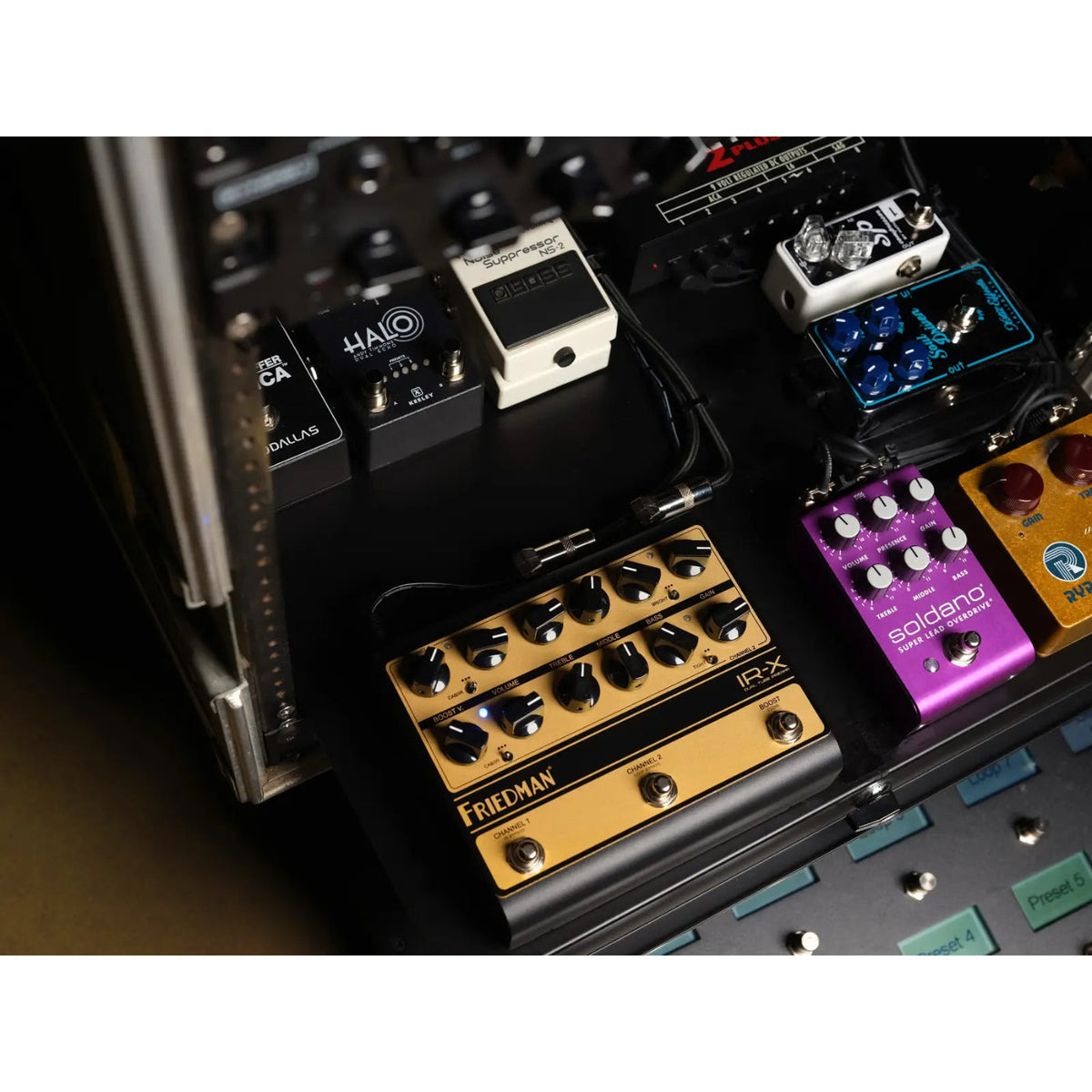

All-In-One

IR-X's surprisingly compact size turns your pedalboard into your entire rig. Run your favorite dirt pedals and filters directly into the IR-X's input as you would with any amplifier, and place your favorite time-based effects in the effects loop. Now send all that tone directly to the board with the stunning-sounding benefits of IR technology.

Standalone Preamp

Do you want all the benefits of IR-X's all-tube preamp section but prefer a live cabinet onstage? No problem. Simply connect the effects loop Send to your time-based effects and then to your amps power section. You can still send the IR output to the console to avoid the hassles of live mic'ing the cabinet (see manual for details).

IR-Loader

To utilize IR-X's IR technology independently of the preamp section, just plug your preferred preamp or pedals into its effects loop return. It's a great way to harness all of its power amp and speaker simulation onstage or in the studio.

Expanded MIDI Control
IR-X is MIDI-capable. Whether pulling up presets with a pedalboard controller or switching channels with the laptop running your entire show, IR-X is ready for the job. It truly is the perfect marriage of modern control and classic tube tone.

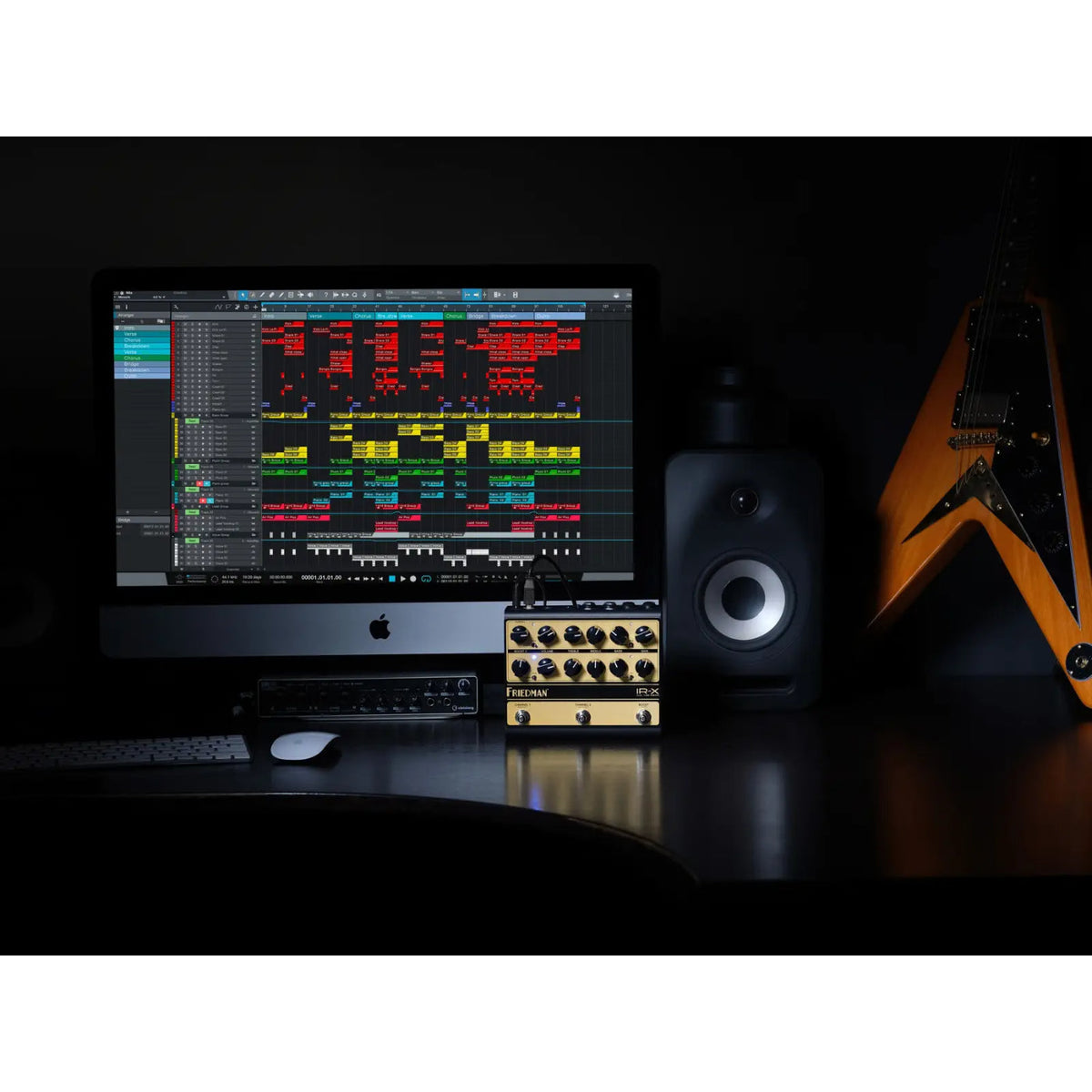

IR-X Editor Software
IR-X gives you astounding tonal control, but its included Friedman IR-X Editor software takes it to a new level. With it, you can tweak each channel’s power amp simulation via the Thump and Presence controls, load your favorite IRs, activate the Boost Lock feature, select loop ON/OFF and save it all to 128 MIDI presets.

IR-X FEATURES:

All-tube HIGH-VOLTAGE preamp - DI

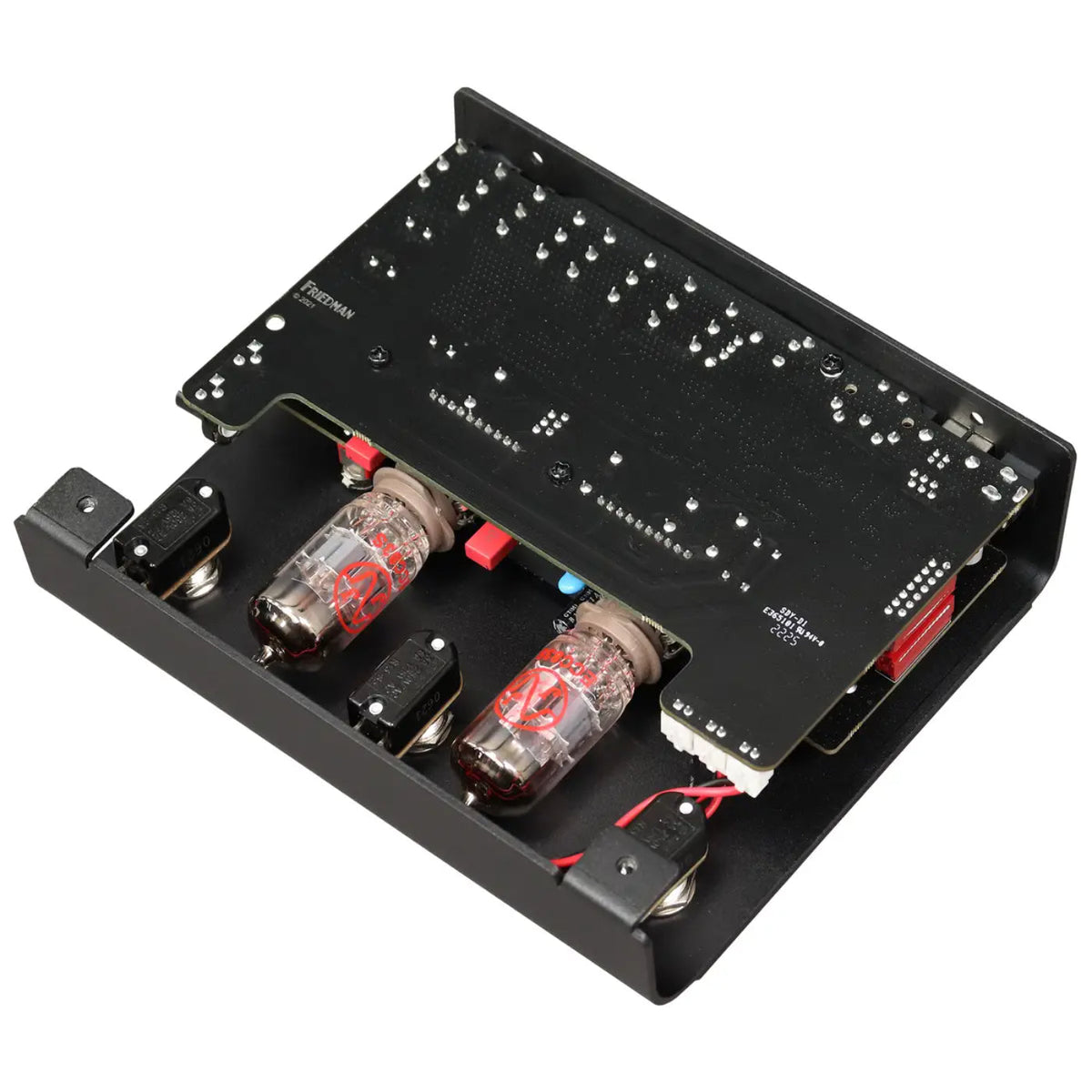

2 x 12AX7 preamp tubes
Two independent channels + boost
Channel 1 (Top channel) clean to gritty
Channel 2 (Bottom channel) high gain drive
MIDI programmable features:
Channel select / Boost
IR select
Thump and Presence – three-way switch per channel
Effects loop ON/OFF
Boost Lock
Power amp simulation with software editable Presence and Thump (per channel)
Low latency Impulse Response cabinet simulation (bypassable)
Three position CAB/IR select switch per channel (programmable via software)
12 free Friedman IRs or load your own

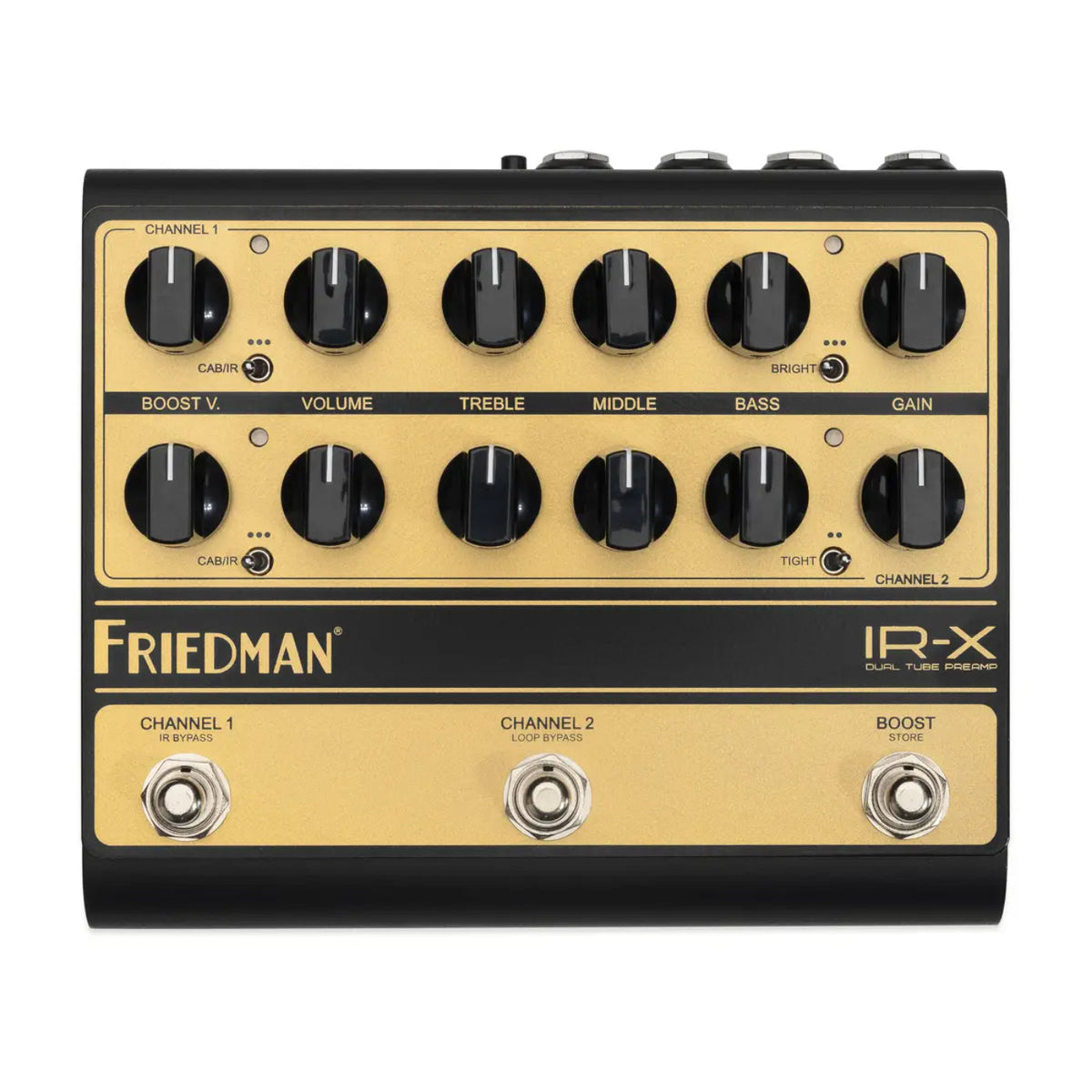

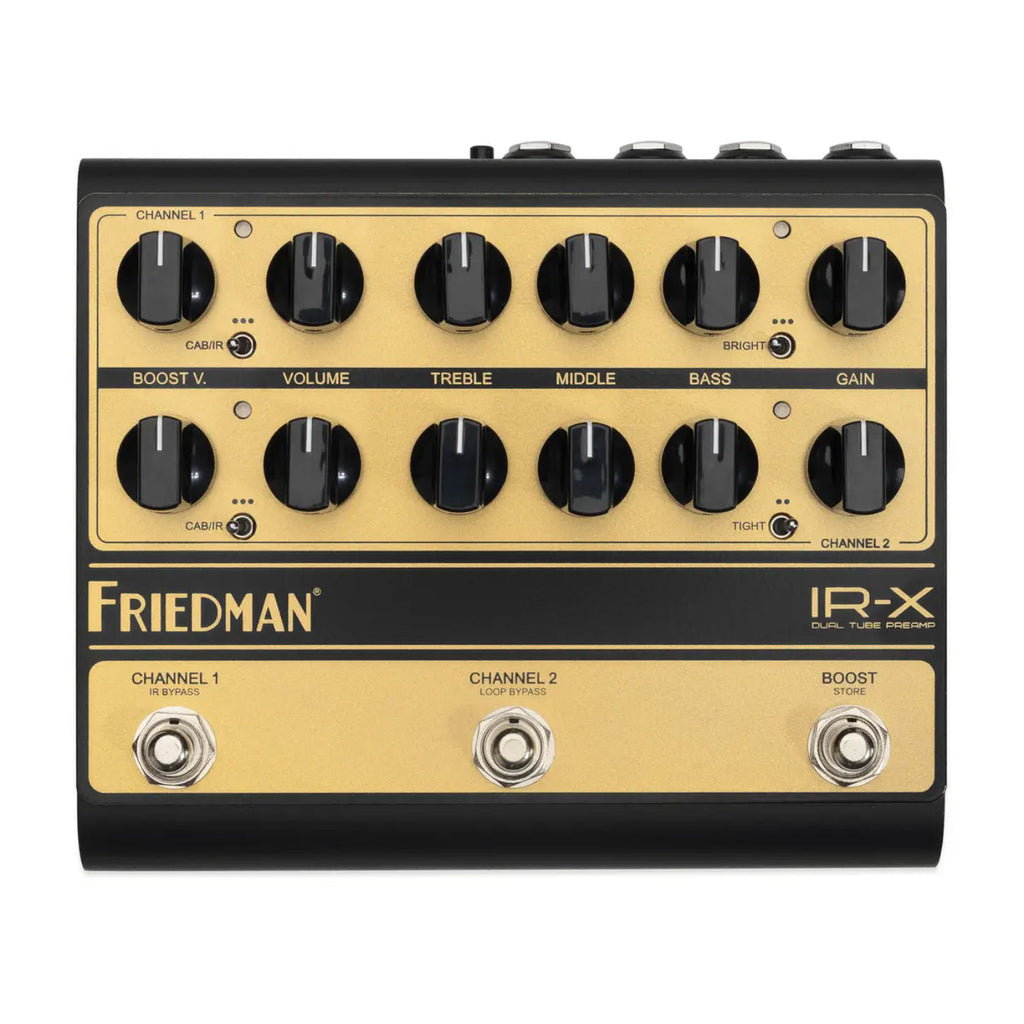

Boost Volume and Gain controls (per channel)
Volume and Gain controls (per channel)
Full EQ consisting of Bass, Middle, Treble (per channel)
3-way Bright switch (Channel 1)
2-way Tight switch (Channel 2)
Three multi-function foot switches

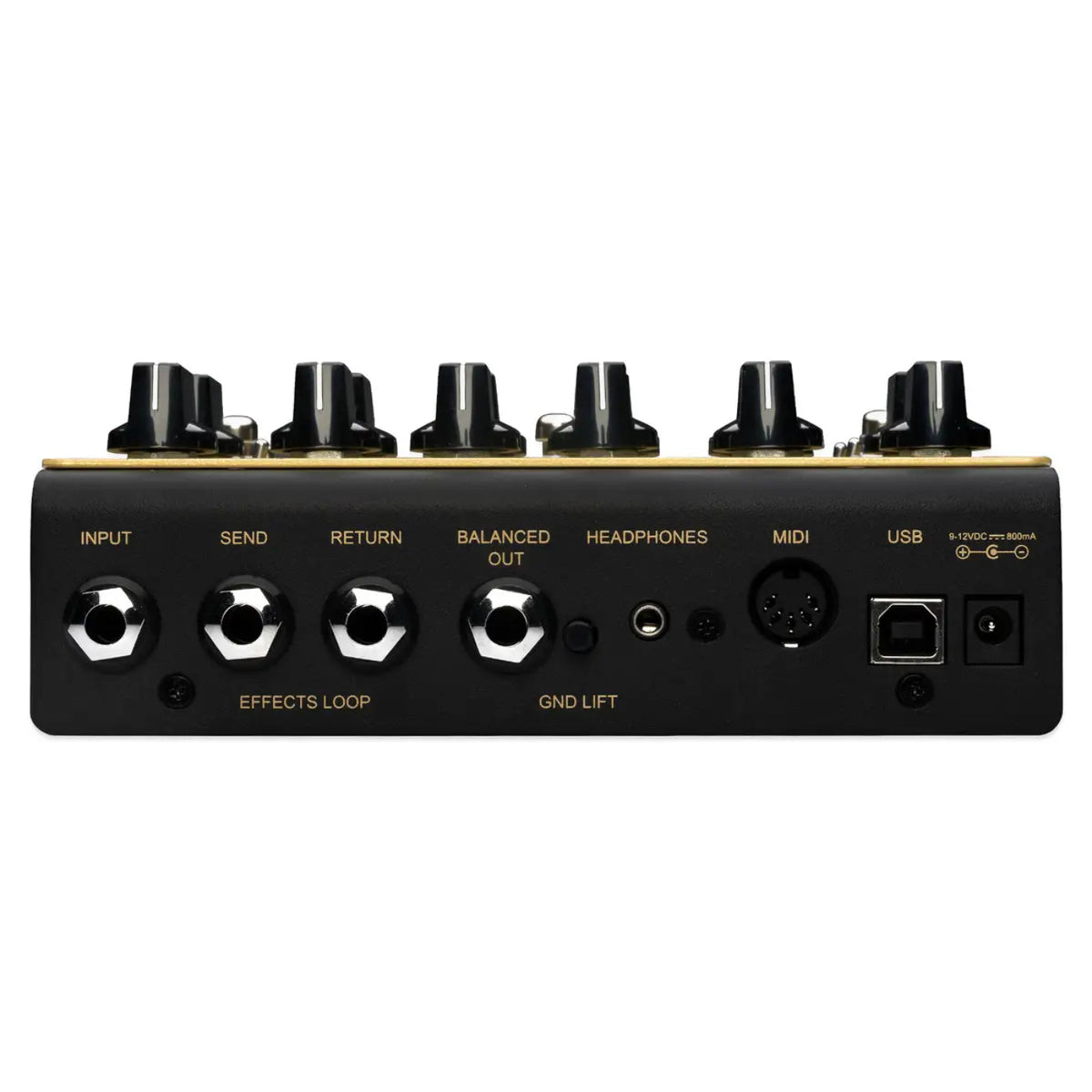

Ultra-transparent series FX loop (bypassable)
TRS balanced output
Headphone output
MIDI 5 pin standard connector and USB MIDI
USB software editor - powered by SYNERGY
Universal 12V Power Supply Included
6 Foot USB2.0 A Male to B Male cable Included
Dimensions (Including Knobs): 5.5” (D) x 6.5” (W) x 2.3 (H)
Weight: 1.5 lbs.
