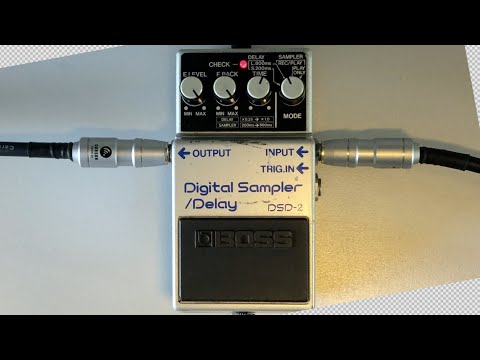

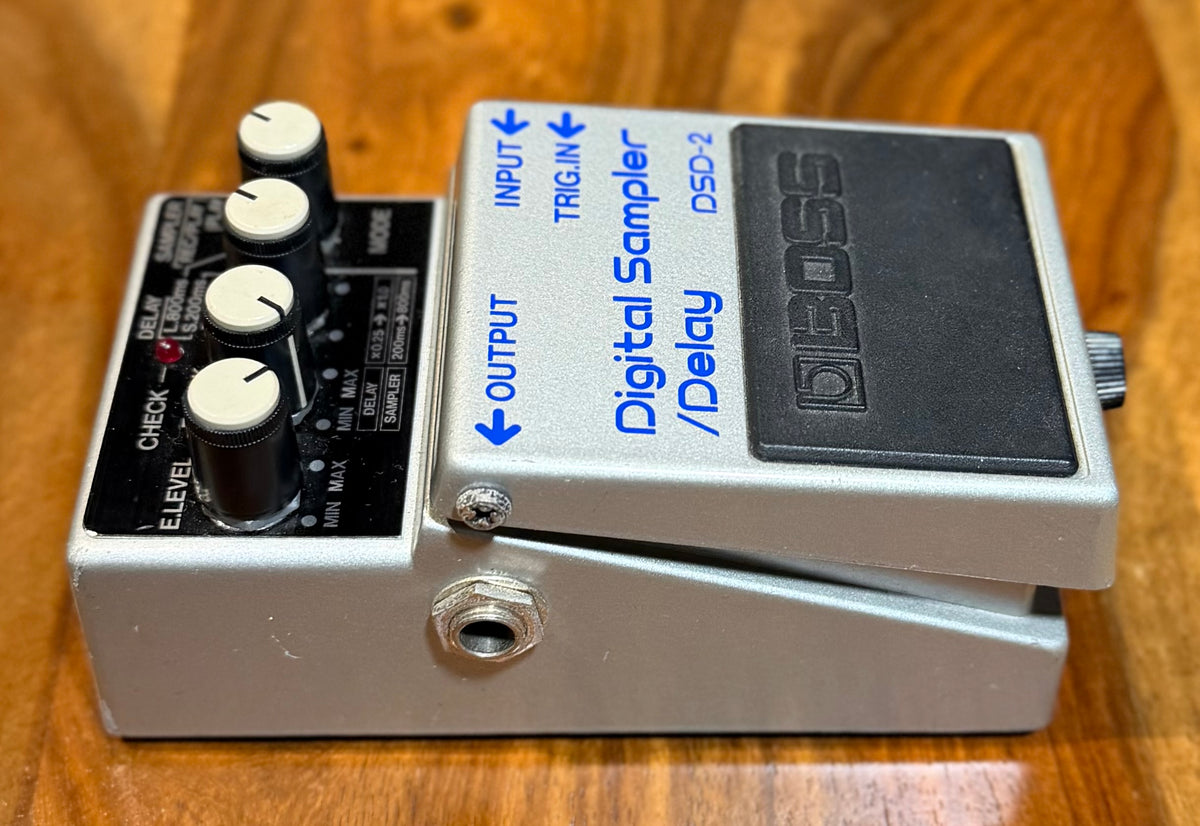

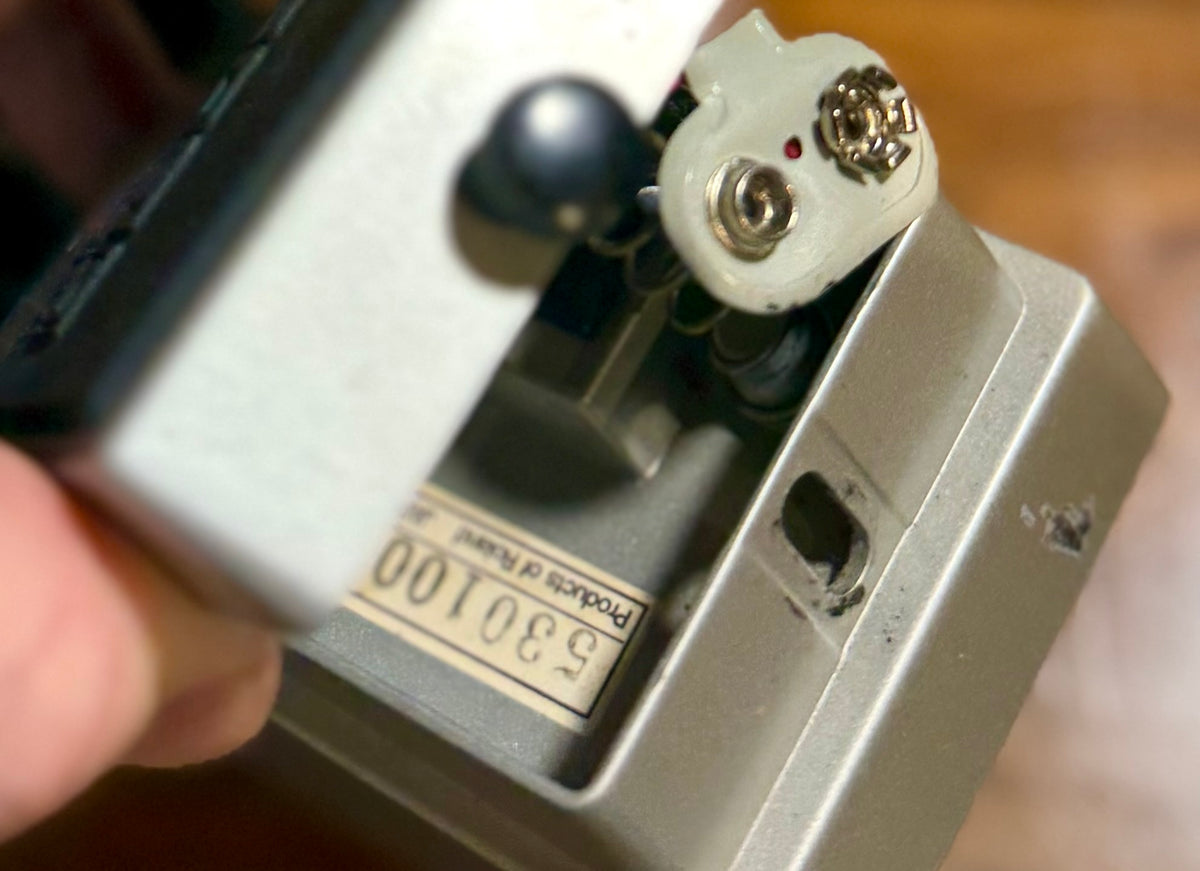

Vintage Boss DSD-2 Digital Sampler Delay Pedal- Japan -April 85 ( Pre Owned) 530100

The Boss DSD-2 Digital Sampler/Delay (1985–1986) is a vintage MIJ pedal combining 12-bit PCM delay (50-800ms) and sampling ( 800ms max) functionalities. Featuring the same chip as the DD-2, it offers crisp, clear delays and a trigger input for rhythmic sampling.

Power:
9V Dry Battery x 1
AC Adaptor: PSA-240, Optional

Current Draw:
45mA to 65mA (9V DC)

Controls:
Effect Level
Feedback Level
Time(Sampling/Delay)

Others:
Mode Selector Switch
Pedal Switch (Normal/Effect Selector in Delay mode.
Trigger Switch in Sampler mode)
LED Indicator (=Battery Check Indicator)

Jacks:
Input
Output
Trigger In
AC Adaptor Jack

Sampling Time:
200ms(MIN) to 800ms(MAX)

Delay Time:
50ms(MIN) to 800ms(MAX)

Frequency Response:
Sampling/Delay Sound: 40Hz to 7kHz
Direct Sound: 10Hz to 60kHz

Residual Noise:
Sampling/Delay mode: -95dBm (IHF-A)
Normal mode: -100dBm or less (IHF-A)

Input Impedance:
1M Ohm (FET input)

Output Load Impedance:
10k Ohms or more

Dimensions:
70(W) x 55(H) x 125(D) mm
2-3/4(W) x 2-3/16(H) x 4-15/16(D) inches

Weight:
450g / 1 lb.
