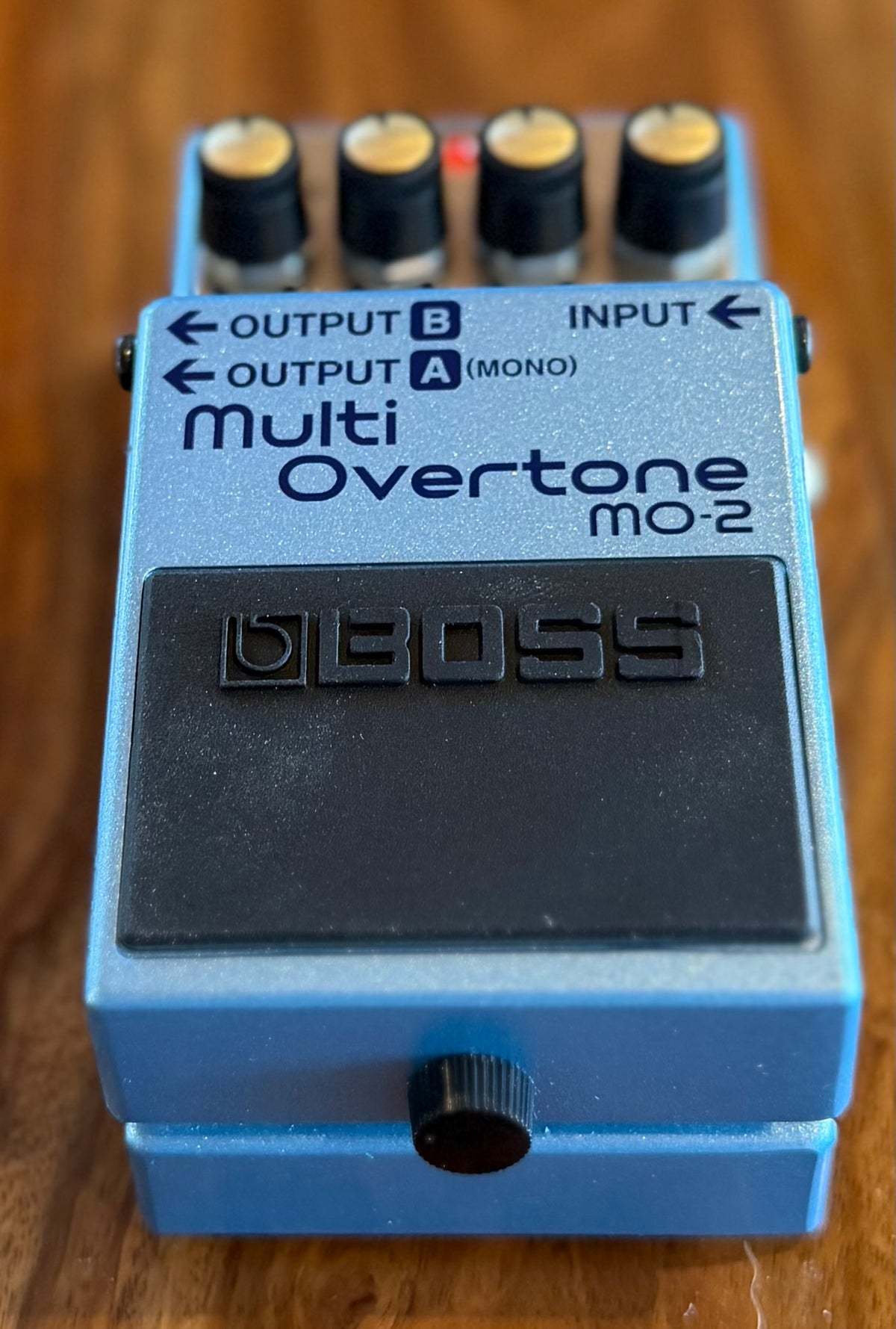

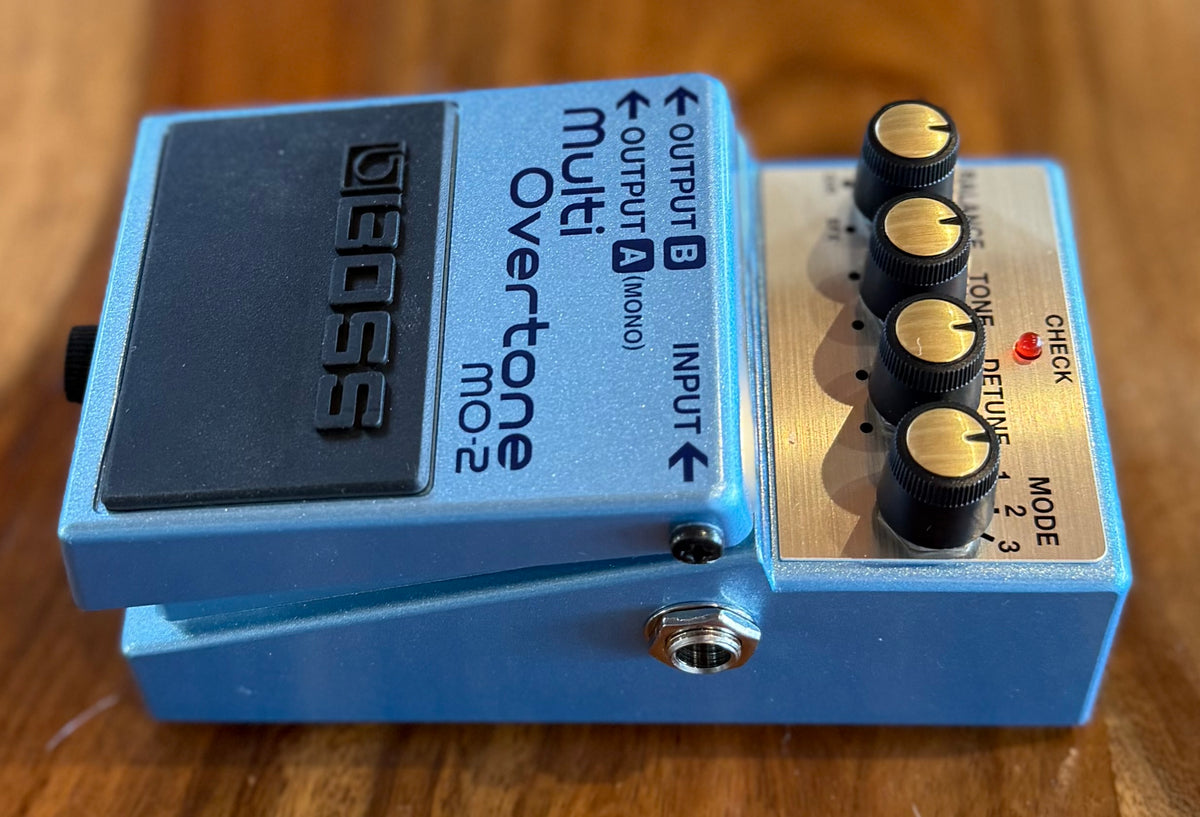

Boss MO-2 Multi Overtone Pedal - Taiwan - April 2013 ( Pre Owned... In Box...Mint) Z9C3345

Powered by Multi-Dimensional Processing, the MO-2 creates impressive, harmonically rich sounds that compliment and enhance your guitar sound.

Features

Powered by Multi-Dimensional Processing technology (MDP), the MO-2 Multi Overtone uses your guitar’s harmonic characteristics to create a wide range of extraordinary new sounds.

• Next-generation BOSS compact pedal with innovative Multi-Dimensional Processing, realized with proprietary technology and custom DSP
• Impressive, harmonically rich sounds that compliment and enhance your straight guitar sound
• Works well with both clean and distorted guitar tones, and also bass guitar
• Ultra-responsive to volume changes and playing dynamics
• Three different sound modes; wide range of tonal adjustment with simple controls
• Mono or stereo output

Multi-Dimensional Processing for Superior Tone

Roland’s innovative Multi-Dimensional Processing (MDP) analyzes audio signals in many dimensions and applies ideal effects to each. By giving different dynamic changes relative to the input signal in real time, MDP can create bold, all-new sounds with a previously unattainable range of expression.

MO-2: An Expressive New Voice

The MO-2 produces incredibly distinctive and expressive tones only possible with the magic of MDP. Using your guitar’s rich harmonic characteristics as a starting point, the MO-2 builds completely new voices that enhance and thicken your normal sound. Three different modes offer diverse tone-shaping options, while the DETUNE knob unlocks a wide range of impressive modulation effects. From shimmery multi-string resonance to flute-like transparency to powerful textures reminiscent of organs and synths, the MO-2 brings you an array of unique sonic tools that add all-new dynamic resonance characteristics to your guitar.

Specs

Nominal Input Level

20 dBu

Input Impedance

1 M ohm

Nominal Output Level

20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Controls

Pedal switch BALANCE knob TONE knob DETUNE knob MODE knob

Indicator

CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack OUTPUT-A (MONO) jack OUTPUT-B jack AC adaptor jack (DC 9 V)

Power Supply

Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22) AC adaptor (sold separately)

Current Draw

40 mA * Expected battery life under continuous use Alkaline: Approx. 10 hours Carbon: Approx. 3 hours These figures will vary depending on the actual conditions of use.

Accessories

Owner's Manual Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information") Alkaline battery (9V, 6LR61)

Option (sold separately)

AC adaptor (PSA series)

Size and Weight (including battery )

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-6/16 inches

Weight

430 g
0 lbs. 16 oz.

* 0 dBu = 0.775 Vrms
