Sound Technology

Unprecedented Natural Reproduction of the Rich Expressive Power and Resonance of an Acoustic Piano

Multi-dimensional Morphing AiR Sound Source

The characteristics of CASIO’s newly developed Multi-dimensional Morphing AiR* Sound Source reflect thorough attention to detail in expressing the rich, resonating tones inherent to the piano. The capacity of the installed memory has been expanded to achieve a longer sampling duration and enhanced waveform data quality. The temporal changes in tone that create sound you would expect only from a piano, beginning with the initial sound and leading into a beautiful extension until the sound eventually vanishes, are reproduced naturally.

*AiR = Acoustic and Intelligent Resonator

Keyboard System

Natural Playing Feel Approaching That of a Grand Piano Firm Touch That Converts the Player’s Thoughts into Sound

Tri-sensor Scaled Hammer Action Keyboard II, with a grand piano's unique sounding timing

The difference between the sound structures of a grand piano and a digital piano appears as a difference in timing, from the moment the instrument is played until the sound is audible. The new Tri-sensor Scaled Hammer Action Keyboard II responds by incorporating a system with three sensors that detect touches of the keys sequentially.

Simulated ebony and ivory keys with optimal fingertip fit for playing ease

The Simulated ebony and ivory keys offers the luxurious feel and texture as well as the smooth touch of a grand piano keyboard. The minutely detailed crimp surface finish inhibits finger slippage due to sweat and gives the sensation of a perfect fingertip fit, even when playing for extended periods.

An unprecedented evolution of the digital piano

String Resonance* resonator achieving deep, rich resonance with 88 keys

The sound produced by an acoustic piano is not only the sound associated with the keys that are struck. Other strings with frequencies closely associated with those producing the sounds resonate as well, adding their sound to give the music a uniquely rich resonance. In ordinary digital pianos, this string resonance effect is reproduced virtually with strings. The Multi-dimensional Morphing AiR sound source takes a different approach, however, by adopting a “string resonance” system incorporating a stereo resonance simulator for all 88 keys. The resonance of the 88 keys is reproduced completely and naturally. The resonance realized by playing a single tone is differentiated from that realized by playing a chord to reproduce the resulting variations in resonance in a natural manner. This even enables players to achieve varying resonances, controlling them at will by the strength of their touch, and thus to realize performances with the unique expressiveness of an acoustic piano.

Damper Resonance*1achieving a more naturally beautiful resonance than a pedal

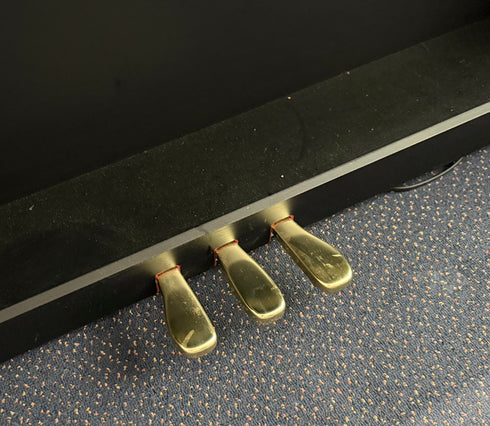

The deep, beautiful resonance resulting from the use of a damper pedal is also reproduced naturally by a stereo resonance simulator installed on all 88 keys, an approach that differs from conventional simulated reproduction employing effect processing. The attention to detail goes so far as to simulate the resonance created by the lifting of the dampers themselves when the pedal is pressed. 　 A continuously variable system has been adopted for the damper pedal, moreover, reproducing even the subtle changes in reverberation that occur in response to the delicate pressure exerted by partial pedal operation. This enables players to employ pedal operation to achieve gracefully expressive performances.

*14 adjustment levels.

Versatile features

Audio Recording (44.1 kHz WAV Format / up to approximately 25 min. per song)

250 pro-quality tones including stereo-sampled grand piano tones

180 rhythms including ethnic rhythms and patterns for piano play

Rhythm Editor (10 user rhythms)

Registration (96 setups)

Music Preset feature including chord progressions for one-touch access to setups for a wide range of music styles (300 presets and 50 user areas)

Digital effects: reverb (4 types), chorus (4 types), brilliance, DSP (preset for some tones)

Lesson feature using60 Music Library songsplus 10 user loaded songs

Multi-track Recorder: 17 tracks x 5 songs, approximately 10,000 notes per song

Duet Mode enabling two people to play in the same range

Tone Select buttons for instant access

USB flash drive port

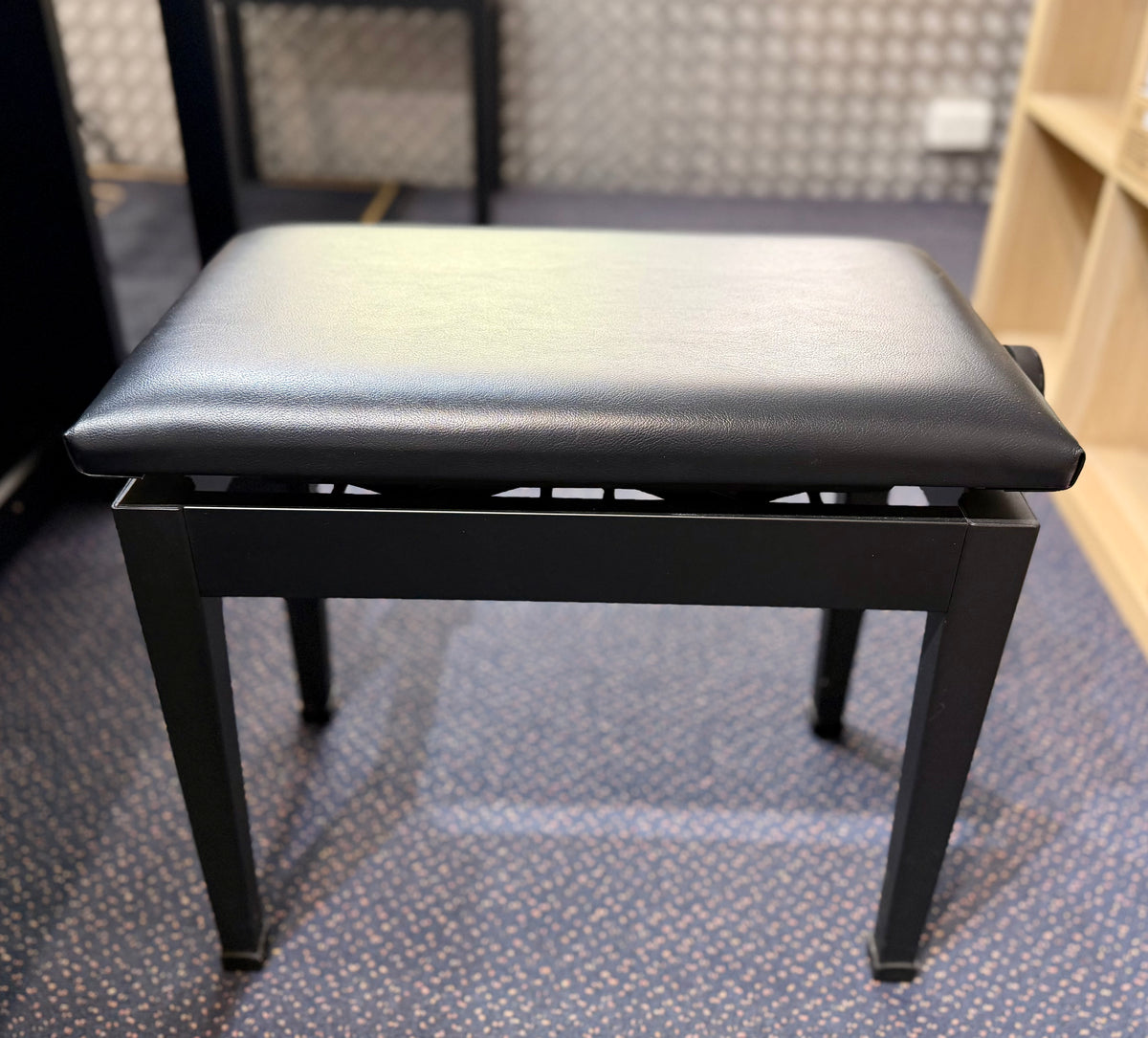

Adjustable-height piano bench included

LINE　IN/OUT jacks(L/MONO, R for each)

AUTO POWER OFF
